  • Offer Profile

  • Officially established in the late 90s, CHETO project is the result of more than 30 years of moldmaking experience.

    Since then, a continuous improvement and attention to the market’s specific needs set the development path for our machines. Optimizing the process is our goal and CHETO machines are able to perform several operations with a single setup and the highest levels of precision. We build time saving machines so our customers reduce their manufacturing costs.

    Today, the market recognizes CHETO machines as a world renowned brand for Deep Hole Drilling. With machines sold in four continents, it is our goal to keep improving and innovating our products.

Product Portfolio

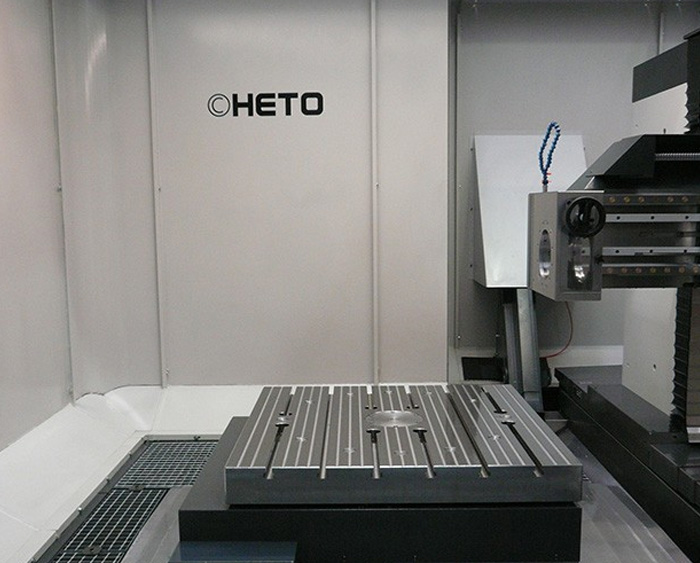

  • CHETO CONCEPT - ALL IN ONE

        • CHETO ALL IN ONE

        • Working all around the part in a single setup (mold industry)

          5 MACHINES IN 1

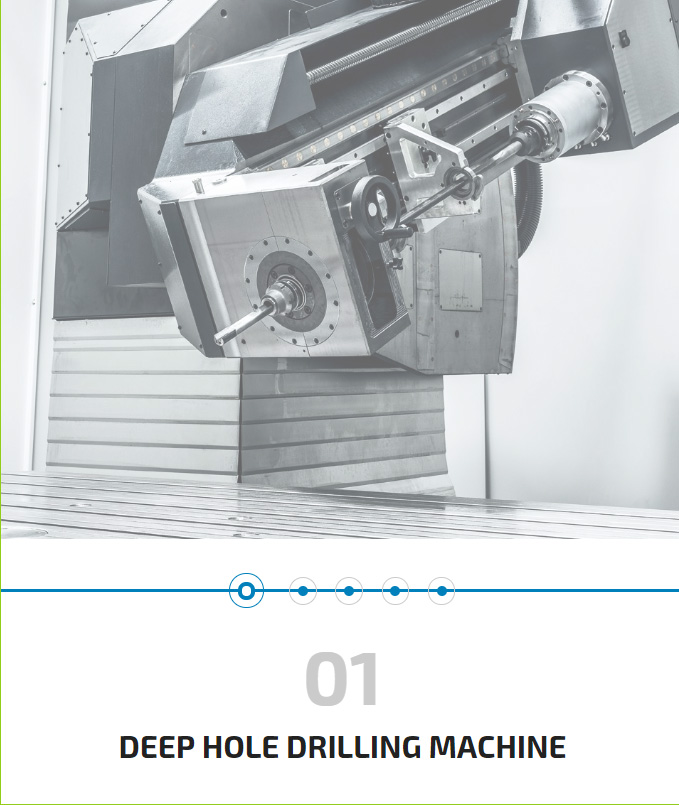

          1.DEEP HOLE DRILLING MACHINE

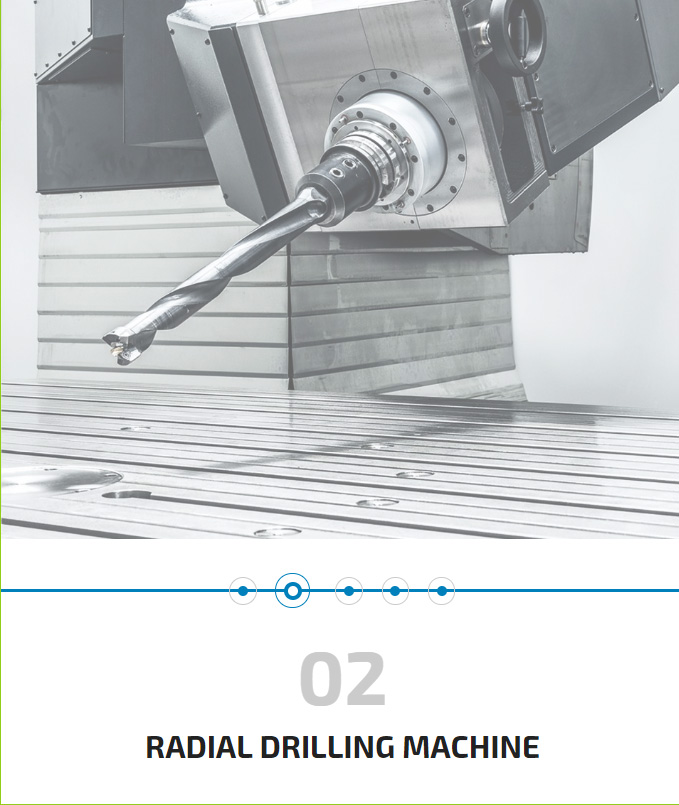

          2.RADIAL DRILLING MACHINE
          3.DILLING MACHINE

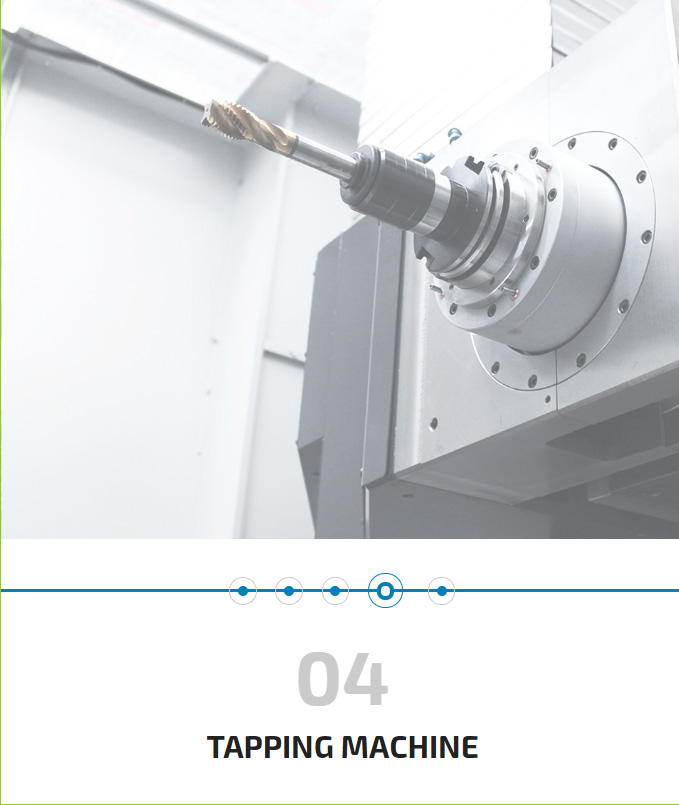

          4.TAPPING MACHINE

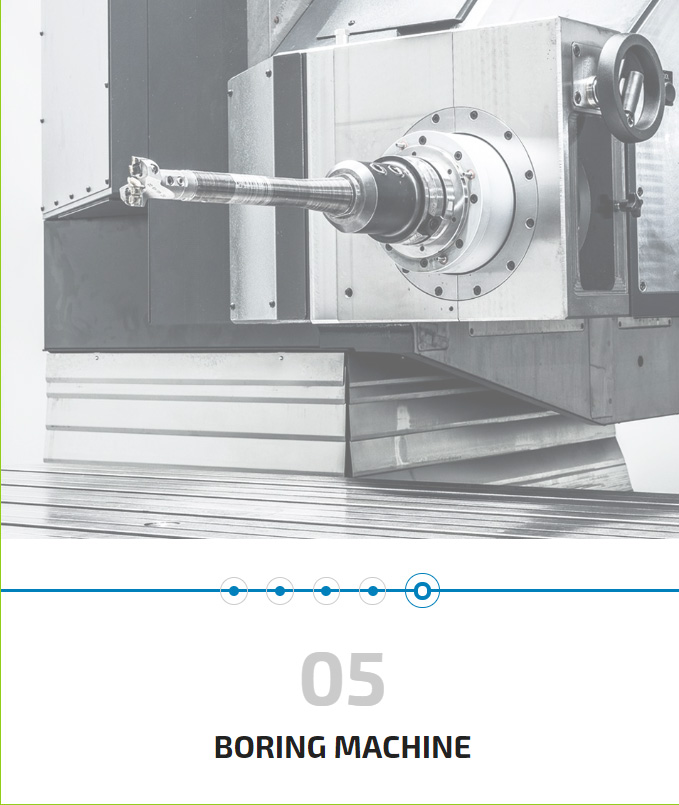

          5.BORING MACHINE

          为什么选择CHETO ?

          • Innovative concept for moldmakers and service companies;
          • Deep hole drilling, standard drilling, milling, tapping, boring in a single machine;
          • Eliminates setup operations in mold manufacturing;
          • Excellent quality/price ratio;
          • Reduction of time and costs;
          • Embedded drilling and machining processes, minimizing human errors;
          • Brand of excellence, internationally recognized in the mold industry;
          • CHETO machines represent an excellent investment for their multitasking features that otherwise were directed at other machines less specific and less adequate to the needs and requirements of the mold manufacturing and other services.

          ADVANTAGES

          • 60% reduction in drilling time
          • 40% reduction in setup time
          • 减少20%的模具delivery time

          MAIN FEATURES

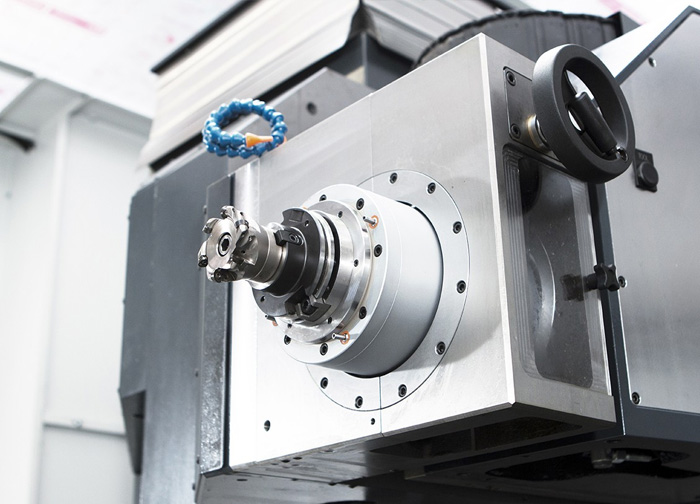

          • Tool changing systems to rapidly and easily exchange between deep hole drilling and milling processes;
          • Customized structure to increase milling capacity (chip removal rate);
          • Active control software dedicated to deep hole drilling, tapping and milling;
          • Ability to, in a single click, translate and rotate coordinates;
          • Latest generation of numerical controls, digital servo-drives, linear slides and high-precision roller guides;
          • Filtering and cooling the cutting fluid;
          • Pressure and flow adjustment to meet the tools requirements;
          • Deep hole drilling with gundrills at high pressure;
          • 智能和在线控制系统with remote access;
          • Rapid and precise machining;
          • Self-compensation of the machine’s dimensional parameters in relation/dependent of operating conditions, namely temperature, humidity, vibration, etc.;
          • Optimized life cycle, safety and energy efficiency;
          • Easy reconfiguration and adaptation to new production/manufacturing realities;
          • User-level safety and environmental efficiency.

    • 6/7 AXIS

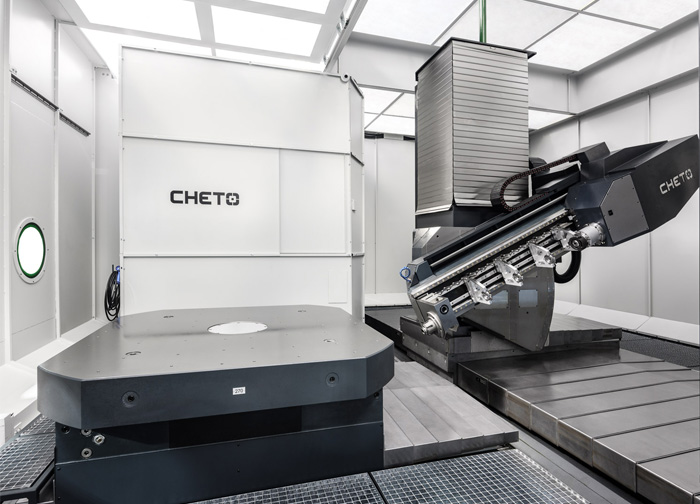

        • IXN 1000 I 2000 I 3000 6/7 AXIS

        • 1000 2000 3000
          CNC AXIS
          X longitudinal travel: 1000 mm | 39.4 in 2000 mm | 78.7 in 3000 mm | 118.1 in
          Y vertical travel 1000 mm | 39.4 in 1200 mm | 47.2 in 1200 mm | 47.2 in
          Z cross travel 800 mm | 31.5 in 800 mm | 31.5 in 800 mm | 31.5 in
          Z1 cross travel 700 mm | 27.6 in 700 mm | 27.6 in 700 mm | 27.6 in *option
          W drilling one stroke 1630 mm | 64.2 in 1630 mm | 64.2 in 1630 mm | 64.2 in
          B table rotation 360,000 pos. 360,000 pos. 360,000 pos.
          A tilting rotation +25º/-15º +25º/-15º +25º/-15º

          STANDARD EQUIPMENT

          • CNC FAGOR 8065
          • Electronic handwheel
          • Digital drives
          • Nitrogen double counterweight
          • Nitrogen double counterweight
          • Absolute linear encoders in AXIS X, Y and Z
          • Absolute angular encoders in AXIS A and B
          • Telescopic covers in all AXIS (except drilling axis)
          • Kinematics / RTCP
          • Rigid tapping
          • Quick change between drilling/milling
          • Coolant tank with automatic filtering
          • Submerged pumps for oil recirculation
          • High-pressure pump 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
          • Automatic chip conveyor-
          • Complete cover with doors, laminated glass windows and acrylic ceiling

          OPTIONAL EQUIPMENT
          • CNC HEIDENHAIN TNC640
          • ATC automatic tool changer up to 250 tools
          • ATC gun drill up to 5 tools
          • Upgrade size option for AXIS Y and W
          • Upgrade table size options up to 2000x2000 mm | 78.7x78.7 in
          • Z1 axis = 700 mm | 27.6 in
          • Tilting rotation +25º/-25º
          • Spindle motor power upgrade

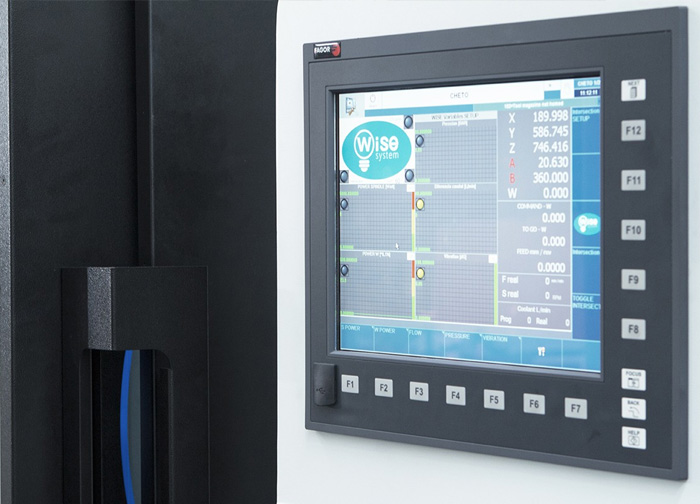

          • Wise software system
          • AC for electrical cabinet
          • Immersion chiller for oil/emulsion
          • Air cleaning unit
          • High pressure pump 100 bar
          • BLUM MCA7 Laser measuring system
          • BLUM TC60 Electric probe
          • Machine preparation for automation

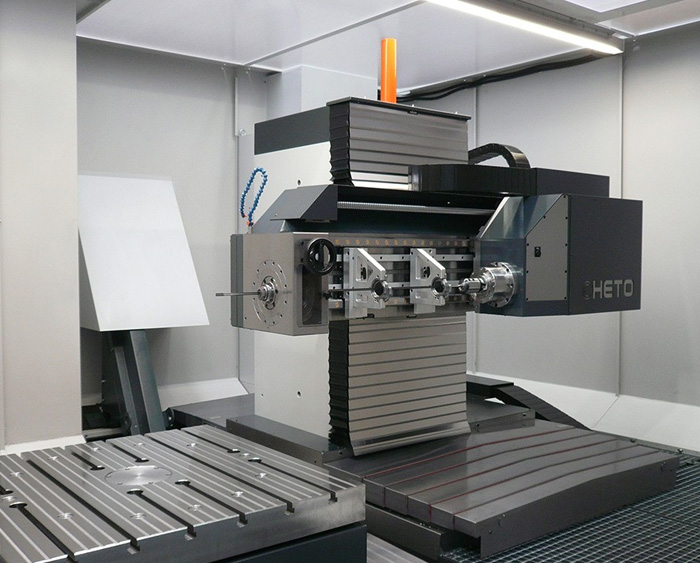

        • MT 1500 I 2500 6 AXIS

        • 1500 2500
          CNC AXIS
          X longitudinal travel: 1500 mm | 59.1 in 2500 mm | 98.4 in
          Y vertical travel 1000 mm | 39.4 in 1200 mm | 47.2 in
          Z cross travel 650 mm | 25.6 in 650 mm | 25.6 in
          W drilling one stroke 1630 mm | 64.2 in 1630 mm | 64.2 in
          B table rotation 360,000 pos. 360,000 pos.
          A tilting rotation +25º/-15º +25º/-15º

          STANDARD EQUIPMENT

          • CNC FAGOR
          • Communication ethernet/USB
          • Electronic handwheel
          • Digital optical drives
          • SERCOS
          • Remote I/Os
          • Nitrogen double counter weight
          • Linear roller guideways
          • Glass scales in all AXIS except W axis
          • RTCP to tool (A axis)
          • RTCP function for piece origin (B axis)
          • Rigid tapping
          • Quick change between drilling/milling
          • High pressure pump 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
          • Coolant tank with automatic filtering
          • Carter submerge pump for oil recirculation
          • Automatic chip conveyo
          • rComplete covering with movable doors

          OPTIONAL EQUIPMENT
          • ATC automatic tool change (40 or 24 tools)
          • Spindle with 6,000 rpm
          • Wise software system
          • AC for electrical cabinet Immersion chiller for oil/emulsion
          • Table size 2000x2000 mm | 78.7x78.7 in
          • Mirror Version
          • Y axis = 1500 mm | 59.1 in
          • W axis = 2000 mm | 78.7 in

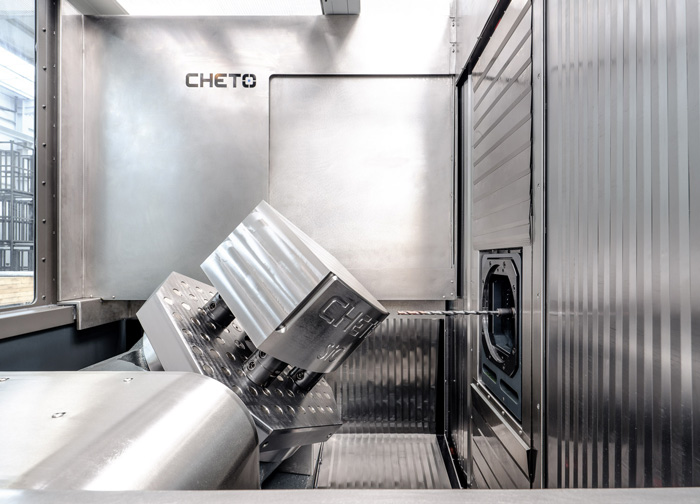

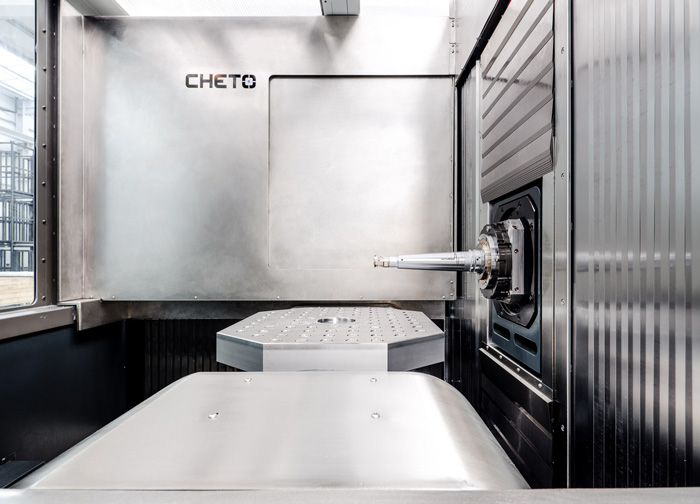

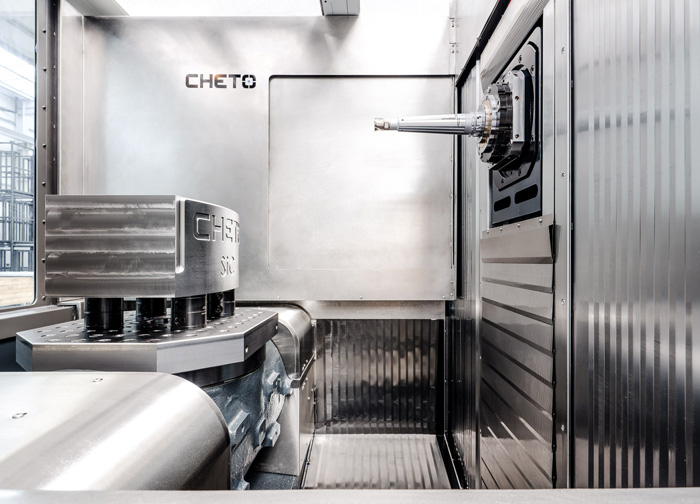

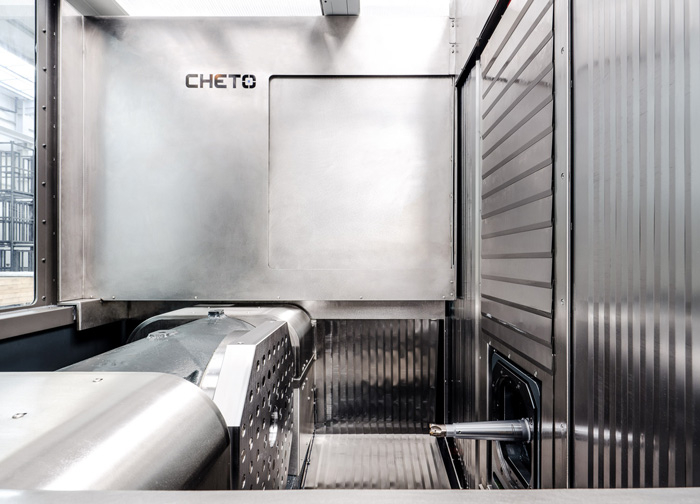

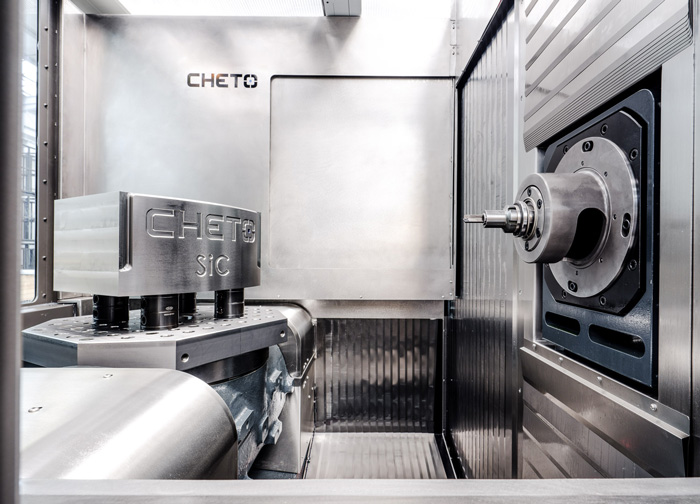

        • SIC 650 6 AXIS

        • 1000
          CNC AXIS
          X longitudinal travel: 650 mm | 25.6 in
          Y vertical travel '840 mm | 33.1 in
          Z cross travel 500毫米19.6 |
          W drilling one stroke 1120 mm | 44.0 in
          B table rotation 360,000
          A tilting rotation +90°/-45°

          STANDARD EQUIPMENT

          • CNC FAGOR 8065
          • Electronic handwheel
          • Digital drives
          • Absolute linear encoders in AXIS X, Y and Z
          • Absolute angular encoders in AXIS A and B
          • Kinematics RTCP
          • Rigid tapping
          • Quick change between drilling/milling
          • Coolant tank with automatic filtering
          • Submerged pumps for oil recirculation
          • High-pressure pump 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
          • Automatic chip conveyor
          • Complete cover with doors, laminated glass windows and acrylic ceiling

          OPTIONAL EQUIPMENT
          • CNC HEIDENHAIN TNC 640
          • ATC automatic tool changer up to 112 tools
          • Wise software system
          • Independent refrigerator unit for the coolant
          • Air cleaning unit
          • High pressure pump 100 bar
          • BLUM MC A7/2 Laser measuring system
          • BLUM TC60 Electric probe
          • Immersion chiller for oil/emulsion
          • Table with zero clamping system prepared for automation with automatic frontal door

      • 5 AXIS

          • CC 1000

          • 1000
            CNC AXIS
            X longitudinal travel: 1000 mm | 39.4 in
            Y vertical travel 600 mm | 23.6 in
            Z cross travel 500 mm | 19.7 in
            W drilling one stroke 1550 mm | 61.0 in
            B table rotation 360,000 pos.

            STANDARD EQUIPMENT
            • CNC FAGOR 8055i Power
            • Communication ethernet/USB
            • Electronic handwheel
            • Digital optical drives SERCOS
            • Remote I/Os
            • Nitrogen double counterweight
            • Linear roller guideways
            • Kinematics RTCP
            • Rigid tapping
            • Quick change between drilling/milling
            • High pressure pump 70 bar, 90 l/min | 1,015 psi, 23.8 gal/min
            • Coolant tank with automatic filtering
            • Automatic chip conveyor
            • Complete covering with movable doors

            OPTIONAL EQUIPMENT
            • CNC FAGOR 8060-M
            • ATC automatic tool changer up to 40 tools
            • Spindle motor power upgrade
            • Wise software system
            • AC for electrical cabinet
            • Immersion chiller for oil/emulsion
            • Air cleaning unit
            • High pressure pump 100 bar
            • BLUM MCA7 Laser measuring system
            • BLUM TC60 Electric probe

          • PWN 1000,2000,3000

          • 1000 2000 3000
            CNC AXIS
            X longitudinal travel: 1000 mm | 39.4 in 2000 mm | 78.7 in 3000 mm | 118.1 in
            Y vertical travel 1000 mm | 39.4 in 1200 mm | 47.2 in 1200 mm | 47.2 in
            Z cross travel 800 mm | 31.5 in 800 mm | 31.5 in 800 mm | 31.5 in
            W drilling one stroke 1630 mm | 64.2 in 1630 mm | 64.2 in 1630 mm | 64.2 in
            B table rotation 360,000 pos. 360,000 pos. 360,000 pos.

            STANDARD EQUIPMENT
            • CNC FAGOR 8065
            • Electronic handwheel
            • Digital drives
            • Nitrogen double counterweight
            • Absolute angular encoders in axis B
            • Telescopic covers in all AXIS (except drilling axis)
            • Kinematics RTCP
            • Rigid tapping
            • Quick change between drilling/milling
            • Coolant tank with automatic filtering
            • Submerged pumps for oil recirculation
            • High-pressure pump 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
            • Automatic chip conveyor
            • Complete cover with doors, laminated glass windows and acrylic ceiling

            OPTIONAL EQUIPMENT
            • CNC HEIDENHAIN TNC640
            • ATC automatic tool changer up to 250 tools
            • ATC gun drill up to 5 tools
            • Glass scales in all AXIS except W axis
            • Upgrade size option for AXIS Y and W
            • Upgrade table size options up to 2000x2000 mm | 78.7x78.7 in
            • Spindle motor power upgrade
            • Wise software system
            • AC for electrical cabinet
            • Immersion chiller for oil/emulsion
            • Air cleaning unit
            • High pressure pump 100 bar
            • BLUM MCA7 Laser measuring system
            • BLUM TC60 Electric probe
            • Machine preparation for automation
