Offer Profile
Mushiny Intelligence provides a complete set of technology and service for smart logistics. Our customized solutions are equipped with world-class AI algorithms. We provide highly-usable and reliable robots and systems for warehousing and intralogistics. Our products and system platforms deliver value for various sectors such as e-commerce, manufacturing, distribution, warehousing, and etc. Moreover, our technology goes beyond efficiency improvement and focuses on optimizing the experience of human-device interaction.
Visit us on:

Product Portfolio

Warehouse Systems - Intelligent Warehousing Solutions
Subvert the traditional goods-to-person picking system and increase the efficiency by more than 3 times
- Global deployment within 60 days
- The overall efficiency is increased by 2~3 times
- Storage rate increased by 50%
- Return on investment 1~3 years
- Reduce manpower by 70%
- Picking accuracy 99.99%
- 更多信息

- 用例
- 用例
- 用例
- 用例
- 用例
- 用例

Automated mobile robots
Open, Cooperative and Win-win Platformed-based Strategy

- M6 Series Shelf AMR
- - 更多信息
- Designed for Industrial Applications
  - Safe and Reliable: obstacle avoidance, fireproof, anti-collision as well as sound and light alarms
  - Superior Performance: fast moving and lifting speed, with high precision
  - Flexible Extension: supporting various assemblies, such as robotic arms, rollers and pallet tooling
  - Modular Structure: stable, reliable and easy to maintain
  - Open Protocol: Open AMR protocol and scheduling protocol
  - Easy Accessibility: rapid learning and deployment
  - Adaptation to Mutiple Environments: Adaption to various ground conditions and wide temperature design
  - High Environment Tolerance: support customization of cold storage version
- T6-800 AMR
- - 更多信息
- The first platform-based robot series in the industry
  - Safe and Reliable: obstacle avoidance, fireproof, anti-collision as well as sound and light alarms
  - Superior Performance: fast moving and lifting speed, with high precision
  - Flexible Extension: supporting various assemblies, such as robotic arms, rollers and pallet tooling
  - Modular Structure: stable, reliable and easy to maintain
  - Open Protocol: Open AMR protocol and scheduling protocol
  - Easy Accessibility: rapid learning and deployment
  - Adaptation to Mutiple Environments: Adaption to various ground conditions and wide temperature design
  - High Environment Tolerance: support customization of cold storage version
  Product Parameters:
  - Dimensions: 980x680x245mm
  - AGV weight: 150kg
  - Maximum speed: 2.2m/s
  - Maximum load: 800 kg
  - Roatation accuracy: ±1°
  - Obstacle avoidance method: Lidar obstacle avoidance
  - Positioning accuracy: ±10mm
  - Navigation method: QR code/SLAM + Inertial
  - 安全:avoidanc交通控制、雷达障碍e, safety edge
  - Communication method: WiFi 2.4G/WiFi 5G/Cellular networks 5G
  - Charging method: Automatic/manual
  - Battery capacity: 48V 27Ah Lithium Iron Phosphate
  - Fully charged time: <1.5h
  - Comprehensive battery life: 8h
  - 安全:avoidanc交通控制、雷达障碍e, safety edge

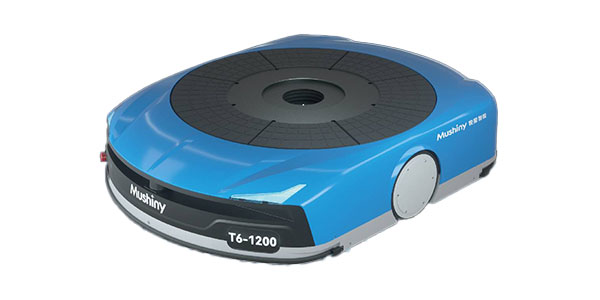

- T6-1200/1500
- - 更多信息
- - Safe and Reliable: obstacle avoidance, fireproof, anti-collision as well as sound and light alarms
  - Superior Performance: fast moving and lifting speed, with high precision
  - Flexible Extension: supporting various assemblies, such as robotic arms, rollers and pallet tooling
  - Modular Structure: stable, reliable and easy to maintain
  - Open Protocol: Open AMR protocol and scheduling protocol
  - Easy Accessibility: rapid learning and deployment
  - Adaptation to Mutiple Environments: Adaption to various ground conditions and wide temperature design
  Product Parameters:
  - Dimensions: 1160x860x245mm
  - AGV weight: 210kg
  - Obstacle avoidance method: Lidar obstacle avoidance
  - Lifting height: 60mm
  - Rotating accuracy: ±1°
  - Positioning accuracy: ±10mm
  - Maximum speed: 1.8m/s
  - Maximum load: 1200kg/1500kg
  - Comprehensive battery life: 12h
  - Fully charged time: <1,5h
  - Ground bearing requirements: 1500kg/m²
  - Climbing capacity: 4%
  - Elevation requirement: <2000m
  - Navigation method: QR code/SLAM + Inertial
  - 安全:avoidanc交通控制、雷达障碍e, safety edge
  - Communication method: WiFi 2.4G/WiFi 5G/Cellular networks 5G
  - Charging method: Automatic/manual
- Mushiny F-15*2 Sortation AMR
- - 更多信息
- 安全问题t, convenient operation and maintenance
  - High speed: Empty/full load 2m/s
  - High flexibility: Double roller Design
  - High load: 15kg*2/35kg*2
  - Highly optimized design
  - Customized height: 600-1000 mm
  Product Parameters:
  - Dimensions: L760xW480xH600
  - AGV weight: 120kg
  - Maximum speed: 2m/s
  - Maximum load: 15kg*2 or 35kg*1
  - Roatation accuracy: 360°
  - Obstacle avoidance method: Single point laser+ ultrasonic
  - Positioning accuracy: 10mm
  - Navigation method: OR code + inertial
  - 安全:avoidanc交通控制、雷达障碍e, safety edge
  - Communication method: WiFi 2.4G/WiFi 5G/Cellular networks 5G
  - Charging method: Automatic/manual
  - Rated voltage: 48V
  - Battery capacity: 16,5 Ah
  - Fully charged time: <1,5h
  - Comprehensive battery life: >5h
  - Fully charged and discharged cycle life: 80% DOD 2000 times
- Mushiny Z-50S/50SF
- - 更多信息
- - High shelf utilization rate: Available for small spacing and headroom
  - Highly optimized design: Extruded aluminium profile door frame
  - Highly reliable mechanism: Chain lifting structure
  - Low structural redundancy: High effective pickup height
  Product Parameters:
  - Driver: Two-wheel differential
  - Navigation method: QR code/ IMU Inertial
  - Obstacle avoidance method: Lidar obstacle avoidance
  - Communication method: WiFi 2.4G/5G/Infrared (optional)/5G (optionial)
  - 安全:avoidanc交通控制、雷达障碍e, safety edge
  - QR code spacing: 0,4m-1,5m
  - Dimensions: 1600*900*4250mm
  - 体重:480公斤
  - Totes amount: 6
  - Totes size: L600*W400wH(170-370)
  - Battery capacity: 49,5 Ah
  - Rated voltage: DC48V
  - Fully charged time: <2h
  - Comprehensive battery size: >6h
- Innovative Mushiny T6 Series AMR
- - 更多信息
- Product Parameters:
  - Modular structure design: Stability, reliability and easy maintenance
  - Supporting SLAM and QR code navigation modes: Dual navigation options
  - High overall operating efficiency Speed up to 2.2m/s
  - Great environmental adaptability Battery operating temperature: -20ºC~50ºC/-4~149ºF (customized type)
  - All-aluminum mechanical structure, segmented chassis Stronger obstacle crossing ability
  - OTA function Easy remote upgrade, troubleshooting, maintenance and problem solving

Technology
Mushiny unique AI algorithm presents multi-dimensional and extremely fine-grained data. It provides all-around support for various operational decisions; more importantly, the robot's operational data in multiple scenarios would be analyzed to make deep machine learning and present "intelligent" behaviour. Based on the practices and requirements of warehousing operations, Mushiny R-WMS system has built a complete set of opening software systems that can cover various scenarios and requirements, which also support multi-path implementation. The unique AI algorithm supports real-time calculation, ensures the optimal operation solution to be selected at every moment, and provides highly strategic recommendations for subsequent operation optimization. Mushiny exclusive software architecture and function construction achieve excellent computing power, only one laptop is required for scheduling 1,000+ robots.

- Intelligent AI Algorithm
- - 更多信息
- Mushiny unique AI algorithm presents multi-dimensional and extremely fine-grained data. It provides all-around support for various operational decisions; more importantly, the robot's operational data in multiple scenarios would be analyzed to make deep machine learning and present "intelligent" behaviour. Based on the practices and requirements of warehousing operations, Mushiny R-WMS system has built a complete set of opening software systems that can cover various scenarios and requirements, which also support multi-path implementation. The unique AI algorithm supports real-time calculation, ensures the optimal operation solution to be selected at every moment, and provides highly strategic recommendations for subsequent operation optimization. Mushiny exclusive software architecture and function construction achieve excellent computing power, only one laptop is required for scheduling 1,000+ robots.
- 1:1 Simulation
- - 更多信息
- Based on real business scenarios, intuitively demonstrate customer business scenarios through the simulator, collect customer feedback, and avoid rework caused by misunderstanding or business changes provide high-value decision-making data, make it easier for customers to make decisions for most of business growth. On-line guarantee, through simulation and verification of algorithms and processes, provides sufficient guarantee for the future rapid and smooth on-line.

iRMS
Robot Management System As Easy As Drawing
Overall functions:
- Scheduling 1000+ AMRs in one map
- Detailed operational data report supports the management and ensure the efficiency
- Support multi-types of robots
- Support both local and cloud deployments
- Real-time problem reporting on Monitoring Page multi-channel subscription notifications
- Scheduling 1000+ AMRs in one map
- Advance congestion detection and dynamic path planning
- Various Customizable Features
- Could interface with various WMS and ERP systems
- 1:1 High-fidelity simulation of the entire process, simulate the real operational conditions

- Map Monitoring
- - 更多信息
- - Powerful simulation function
  - To reveal the actual operational conditions
  - Verification of algorithms and processes through simulation
  - To provide assurance for stable and fast go-live
- Traffic control
- - 更多信息
- - Intelligent scheduling, one-way directional moving, intelligent AMR
  - Path planning, flexible obstacle avoidance
  - Provide the effective solution for Reversible Single Channel with multi exits
  - Access control system
- Scheduling Performance
- - 更多信息
- - Scheduling 1000+ AMRs in one map
  - Displaying the summarized key operational data and report real-time
  - For detailed dynamical operation management
- Emergency Stop by Zone
- - 更多信息
- - Setting the emergency stop by zone or zone groups
  - Setting the emergency stop by localized zone or entire map
  - Automatic safety avoidance cooperated with fire protection system
  - AMRs automatically bypass the emergency stop region, ensure the safety of people and property on site
- Smart Charging
- - 更多信息
- - Smart Charging under AI temperature control
  - Ensure the AMR charging and running reliably and safely, under high temperatures
- Scheduling Performance
- - 更多信息
- - Adopting the high-performance game-level engine
  - Complex working conditions of multiple models on a single map
  - Geometric lock dynamic intelligent scheduling
  - Multi-type AMRs Scheduling
  - Smart avoidance
