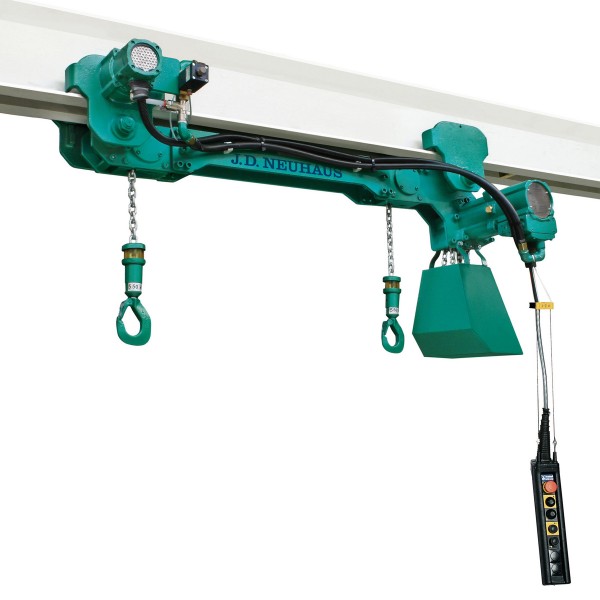

一个专门的大型袋空气吊装，可从J D Neuhaus购买，用于处理1100或2200kg的单个或双袋载荷，以及各种笨重或不寻常的负载。
摄于J.D. Neuhaus Gmbh＆Co。KG
处理过程涉及粉,granulated or other free-flowing materials require regular, high volume product top-ups to maintain adequate production through-puts. The specialised big-bag, air operated hoists manufactured by J D Neuhaus are suitable for operating with single or twin bag loads. These handling products also provide safe, speedy and accurate positioning, even where limited headroom conditions exist.
Typical applications include food products (salt, sugars, flour, starches etc), chemical and construction/building markets (limes-hydrate, plastics, minerals, cement), together with specialist markets including pharmaceuticals, granulate/GGBS, energy, environment/recycling/sewage etc.
Individual bag loads of 1100 or 2200kg can be accommodated, with precision handling facilities incorporated for discharge at storage sites or process line delivery chutes etc. The hoist systems are also designed for reliable and safe operation within dust laden atmospheres, including areas at risk of explosion. Their operating medium is compressed air (6 bar pressure), with additional spark protection also being available, ensuring explosion protection classifications according to Directive 94/9/EG (Equipment and Protection Systems Intended for use in Potentially Explosive Areas [ATEX]). The explosion potential of dust laden atmospheres can be high where handling powdered chemicals, but with more innocuous food based components or metallic powders all being susceptible to ignition where critical air/dust content conditions are reached.
JDN大型袋子处理起千套的设计并具有与刚性间隔梁相连的双顶手推车，并且整个单元在高架支撑梁上运行。提升机是防尘和爆炸保护的，设计用于在极低的净空条件下全天24/7全天候操作。单个处理能力1100和2200kg可提供两种单次或双升降/负载钩的配置。单个钩单元设计用于使用标准十字形举重梁操作。双负载钩模型具有更复杂的光束设计，或用于具有双悬架点的标准起重光束。它们也可以通过同步提升操作进行操作。每个葫芦都装有一个链条盒，该链盒可消除负载和链盒之间碰撞的风险。吊式较低的房间设计也与处理各种笨重或不寻常的负载兼容。这些大型袋装的吊装具有100％的职责额，因此消除了下降。它们还可以提供各种光束尺寸和轮廓，并根据需要提供可选的挂钩中心。 The compact, modern design incorporates many JDN standard components to guarantee reliable operation combined with cost effective manufacture. No additional motor lubrication is required and only a small number of wear-free moving parts are incorporated for minimum maintenance. The hoists can be supplied with optional explosion protection ratings of: EX II 2 GD IIA T4 / II 3 GD IIB T4 and EX II 2 GD IIB T4 or II 2 GD IIC T4.
有关更多信息，请访问http://www.jdngroup.com。
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
