DIAS红外线的Pyrospot系列10的数字增自计已经证明了自己多年来的工业和研究中的精确温度测量值。对于不同的应用，不仅需要不同的温度测量范围，而且还需要适应的光谱范围。从物理的角度来看，应尽可能短暂地进行温度测量，以减少由于发射率原因而减少故障。此外，应使用频谱范围，其中目标的发射量很高，并且环境的破坏程度较小。因此，Pyrospot系列10包括大量的高温计类型，这些高温计现在已经随着新变体而扩展。比率高温计适合在具有可变或未知发射率的物体上测量，哪个在两个直接相邻的光谱范围内起作用。

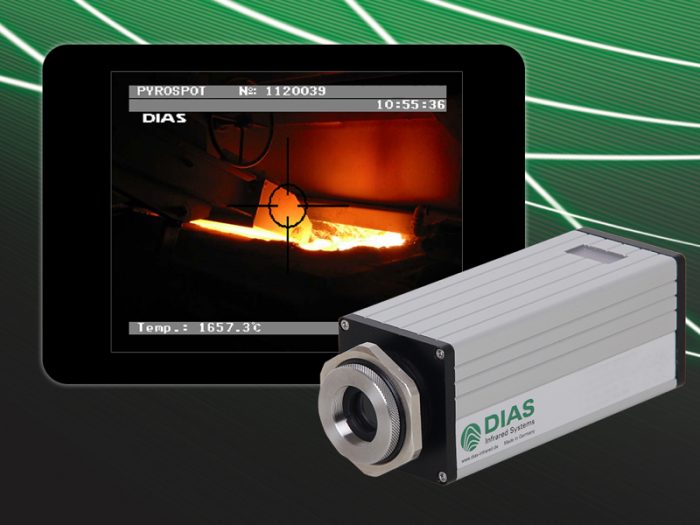

All pyrometers of the PYROSPOT series 10 are in an IP65 compact housing.Thanks to control buttons placed directly on the device, the complete parameterization of the pyrometer can be realized on site. An integrated, easy-to-read display is used to show the measured value and parameters. A variety of accessories also allow operation in harsh environments, such as cooling jackets, air purge units, and special ATEX explosion protection housings. Vario optics with a very small measuring field diameters from 0.7 mm allow optimal adaptation to local conditions. To align the pyrometers to the target, series 10 devices have either a LED or laser pilot light, a through-lens sighting, or a color video camera. With a response time t95 from 1 ms, the pyrometers are also suitable for very fast measuring tasks.
All pyrometers of PYROSPOT series 10 have a temperature linear 0/4 to 20 mA output, a galvanically isolated RS-485 interface (data protocol Modbus RTU), a maximum/minimum value storage and also a galvanically isolated switching output. Thereby an easy implementation into measurement and control systems is possible. For integration into local networks the Ethernet Interface Box DCUIoP is available. With it, a wireless parametrization of the pyrometers can also be set. Thanks to the powerful software PYROSOFT Spot and PYROSOFT Spot Pro the evaluation and further processing of the pyrometer data can take place. At the same time, the parameterization of the pyrometers can also be carried out with the help of this software.
For more information, please visithttps://www.dias-infrared.com.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
